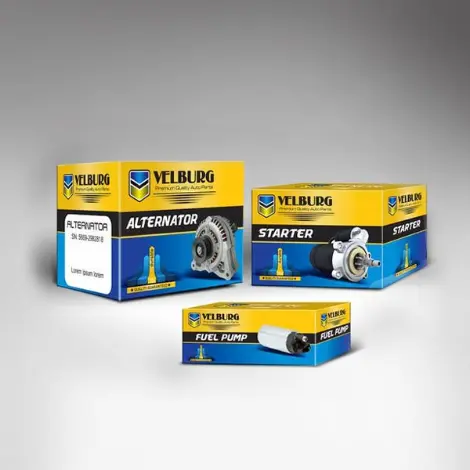

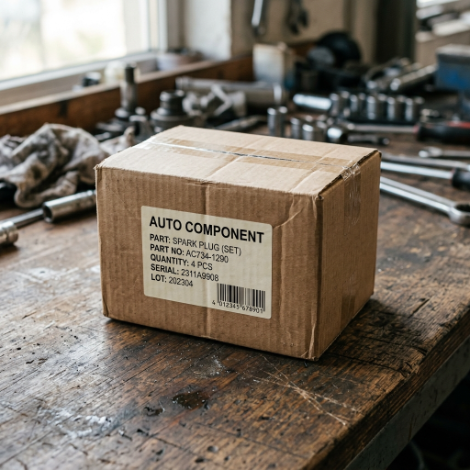

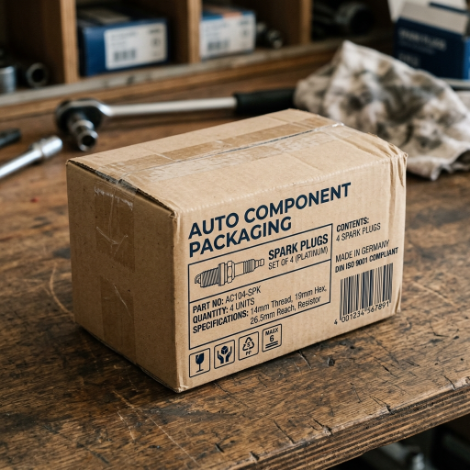

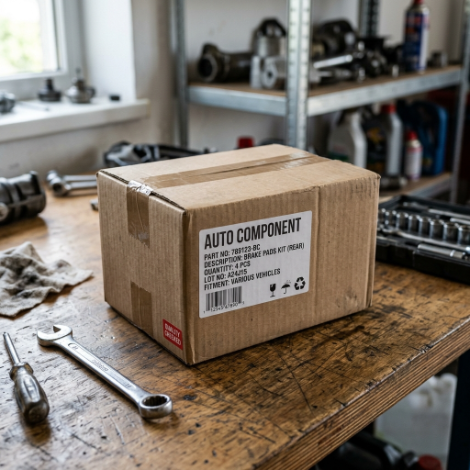

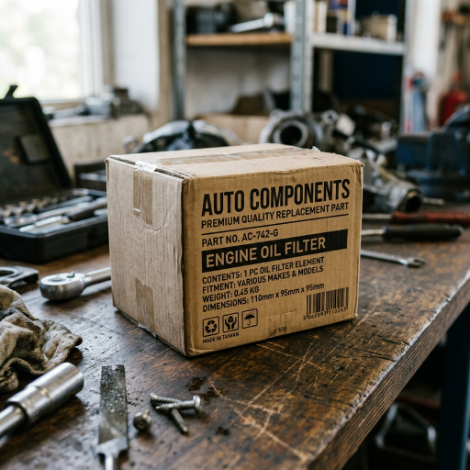

Custom Auto Component Packaging Boxes

Designed for Performance Under Pressure

We understand how critical automotive components are, which is why every box we make is engineered to handle weight, shock, and long transits—while still delivering a sleek customer experience.

Materials

Each material is carefully selected based on the fragility, weight, and finish of your auto parts.

• Corrugated board – Multi-layered for strength and long-haul shipping
• Rigid board – Premium packaging for high-end or sensitive components
• Kraft paperboard – Eco-conscious and durable for medium-weight parts
• Custom foam inserts – Cradles parts to avoid internal movement and friction

Sizes

No matter your product dimensions, we create a perfect-fit box for maximum protection.

• Compact for bearings, filters, and plugs
• Medium for sensors, switches, and small assemblies
• Large for axles, suspension parts, or combo kits
• Bulk packaging with internal dividers for OEMs or workshops

Printing

Boost trust and brand identity with sharp, high-quality visuals.

• Technical info, part numbers, and diagrams
• CMYK or Pantone matching for branding
• Spot UV, gloss, or matte finishes
• QR codes for manuals or digital installations

Add-ons

Boost performance and presentation with intelligent box features.

• Dividers, foam slots, or trays for multi-part kits
• Instruction holders for manuals or certification cards
• Tamper-evident tabs or tape for added security
• Inventory barcodes, warranty labels, or serial number sections

The 3Ps Approach

Presentation

Let your parts shine before they’re even installed. Clean prints and sleek box finishes give a lasting impression of quality and precision.

Preservation

Each box is moisture- and dust-resistant, preventing corrosion and surface damage during storage or transit.

Protection

Heavy-duty designs with smart interiors make sure your parts arrive safe—even across rugged supply chains or warehouse stacking.

Why Choose Custom Boxes Lab?

From single units to bulk deliveries, over 5,000 companies trust us for auto packaging that protects, performs, and promotes.

• Precision-built packaging for every auto component
• Low MOQs and wholesale pricing
• Free box design support and mockups
• Fast shipping across the U.S.
• Friendly, responsive support from packaging pros

Get a Quote Today

Protect your parts and elevate your brand with confidence.To get cost-effective packaging boxes without compromising on quality, you can contact us at (469) 649-8706 or email us sales@customboxeslab.com

When measuring a custom box, there are a few technical specifications that must be considered to ensure proper design, manufacturing, and fit for the product. Here are the major technical things to measure a custom box:

Inside Dimensions (Critical for Product Fit)

• Length (L): The longest side of the box measured inside from one corner to the opposite corner.
• Width (W): The shorter side of the box measured inside perpendicular to the length.
• Depth/Height (D or H): Measured inside from the bottom to the top opening of the box. Always specify that dimensions are given in Length × Width × Height.

Outside Dimensions (Important for Shipping & Storage)

• Measure the outer surfaces of the box including material thickness.
• Outside measurements are used for pallet stacking, warehouse spacing, and shipping compliance.

Material Thickness (Board Caliper)

• The thickness of the packaging material (e.g., corrugated board, rigid stock, cardstock).
• Impacts both the internal usable space and external dimensions.

Flap Measurements

• For boxes with flaps (e.g., mailer or shipping boxes), measure:
• Inner flaps: Ensure they meet in the middle without overlapping too much.
• Outer flaps: Allow proper sealing without gaps.

Tolerances

• Account for manufacturing tolerances (usually ±1/16" or ±2mm depending on material).
• Ensure the product fits without being too tight or loose.

Volume Capacity

• Calculate internal cubic capacity (L × W × H).
• Helps in determining how much space the product will occupy and shipping efficiency.

Product Orientation

• Decide how the product sits inside the box and measure accordingly.
• Orientation affects whether length or width is the primary dimension.

Die-Cut Openings or Windows

• Measure exact placement, height, and width for any cutouts.
• Ensure structural integrity when adding windows.

Printing Bleed & Safe Zones

• Include measurements for:
• Bleed area: Extra space beyond the cut line for printing.
• Safe zone: Inner area where critical text or logos should be placed.

Closure Type & Locking Tabs

• Measure slots, tabs, or locks for boxes with custom closures.
• Precision is required to avoid misalignment during assembly.

Packaging Style

• Folds, creases, and scores must be measured for accurate dieline creation.
• Different styles (e.g., RSC, tuck-end, mailer, sleeve) require specific panel measurements.
